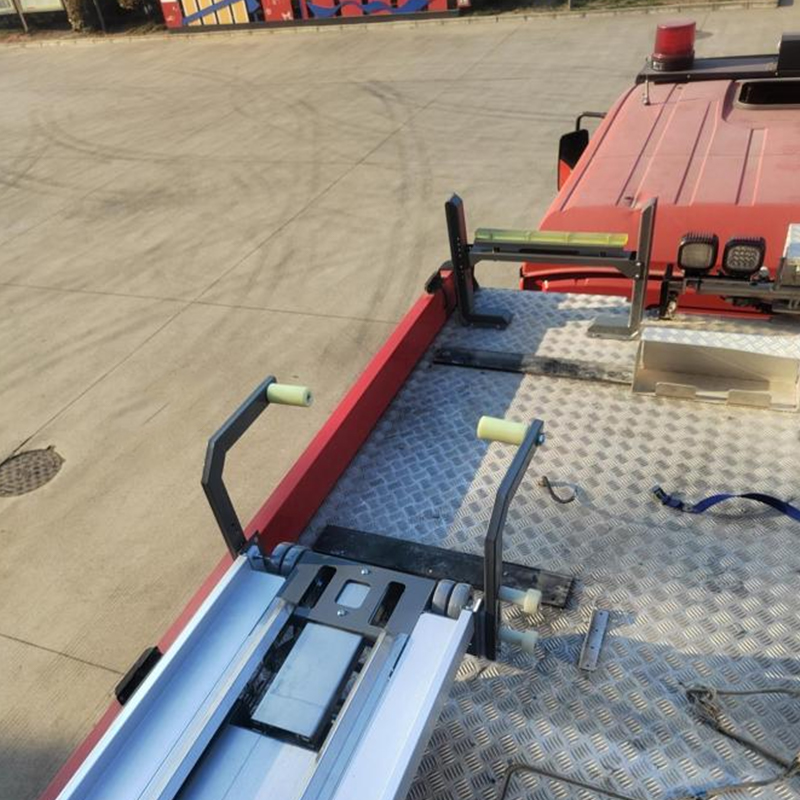

Electric Fire Truck Ladder Racks

Product Overview

During the process of retrieving and placing firefighting equipment, unfolding and retracting operations, our company has always pursued ways to reduce the physical effort of firefighters, improve their safety, and shorten the time required for deployment.

The automatic tilting ladder rack is the first in China to adopt a cylinder, featuring small size, light weight, low cost, high reliability, and ease of logistics.

Selection Guide

6-meter ladder rack: Available as a 6-meter manual single-rail ladder rack or a 6-meter pneumatic ladder rack (standard model).

15-meter ladder rack: Available as a 15-meter pneumatic ladder rack (standard model), 15-meter pneumatic ladder rack (ground-deploy model), or 15-meter pneumatic ladder rack (side-tilt model).

Technical Parameters

Ladder rack dimensions ≤ 1760 × 1400 × 850 mm.

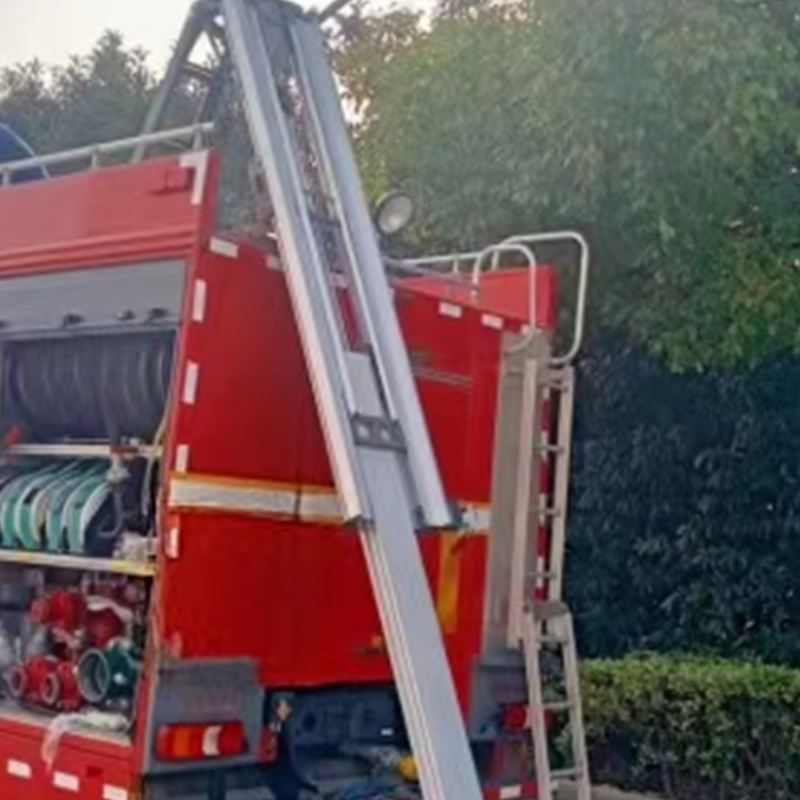

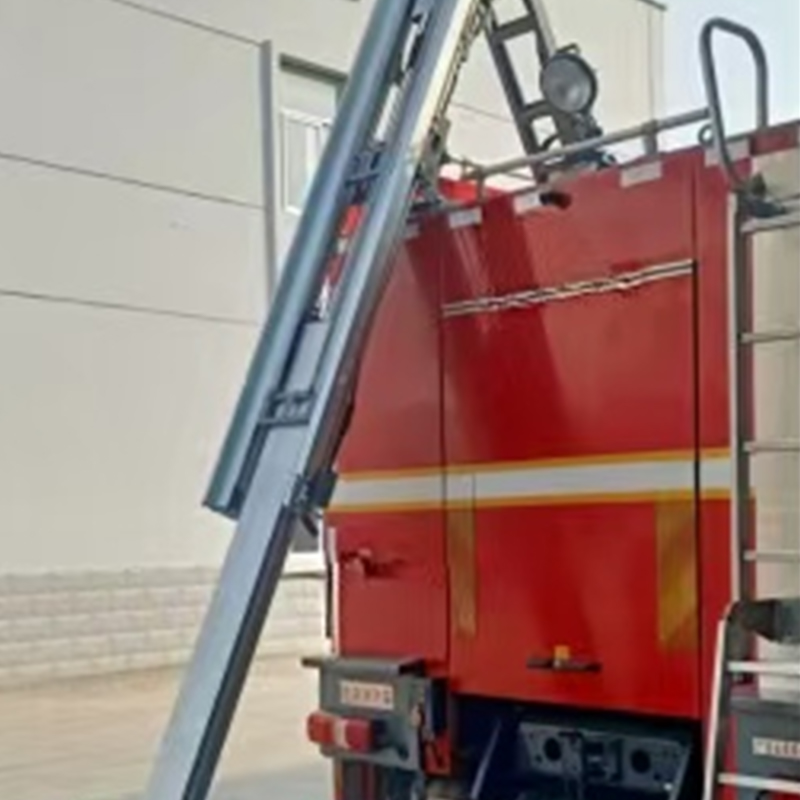

Ladder rack unfolding and tilting angle: 48°–52°, tilts down from the roof ≤ 2.3 m (extension stroke ≤ 2.5 m).

The ladder rack body is made of aluminum alloy 6061, and the base is made of steel plate Q235A, with a process of galvanization followed by powder coating—total weight ≤ 160 kg.

The ladder rack is suitable for 6 m, 9 m, 12 m, and 15 m ladders.

Ladder rack equipment load capacity ≥ 100 kg.
