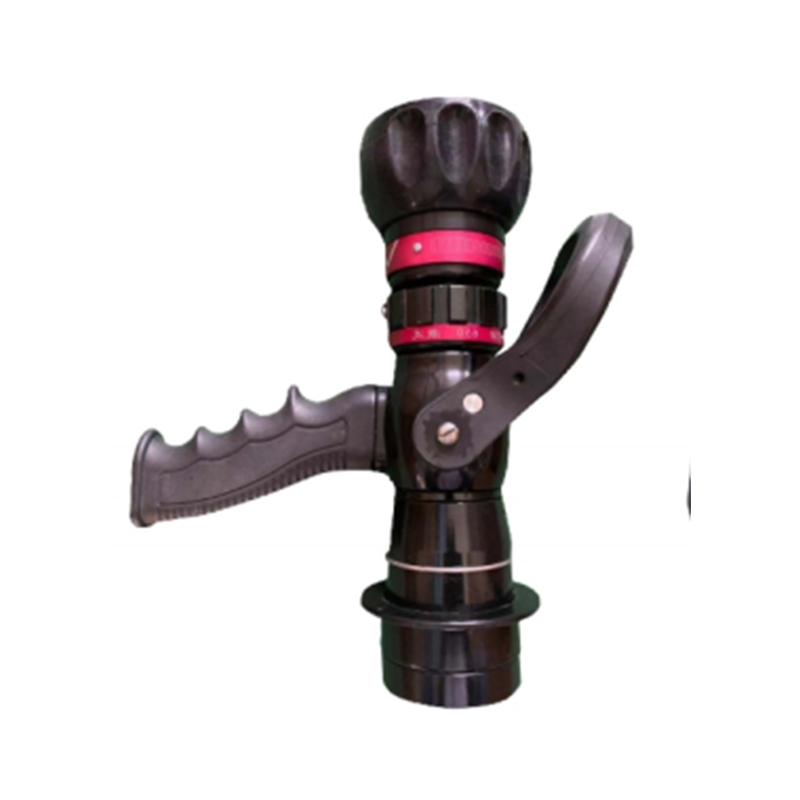

Multifunctional Fire-Fighting Nozzles


We specialize in manufacturing professional-grade multifunctional fire-fighting nozzles suitable for fire trucks, pump trucks, and emergency vehicles. These multifunctional nozzles allow firefighters to switch between multiple spray patterns— including straight stream, narrow fog, wide fog, and flush mode—by simply rotating the nozzle ring or operating the lever. They are made of lightweight hard-anodized aluminum or corrosion-resistant brass. Features include a trigger switch for one-hand operation, a rotating water inlet, and flow control from fully closed to fully open. OEM supply is available for fire truck body manufacturers and equipment distributors.

Inquiry Now
  • Performance Parameters of Multifunctional Fire Hose Nozzle
    Nominal Inlet Diameter (mm) Rated Spray Pressure (MPa) Rated Flow Rate (L/s) Flow Rate Tolerance (%) Range (m)
    40 0.6 2.5 ±8 ≥21
    4 ≥25
    5 ≥27
    50 6.5 ≥30
    8 ≥32
    65 10 ≥34
    13 ≥37
