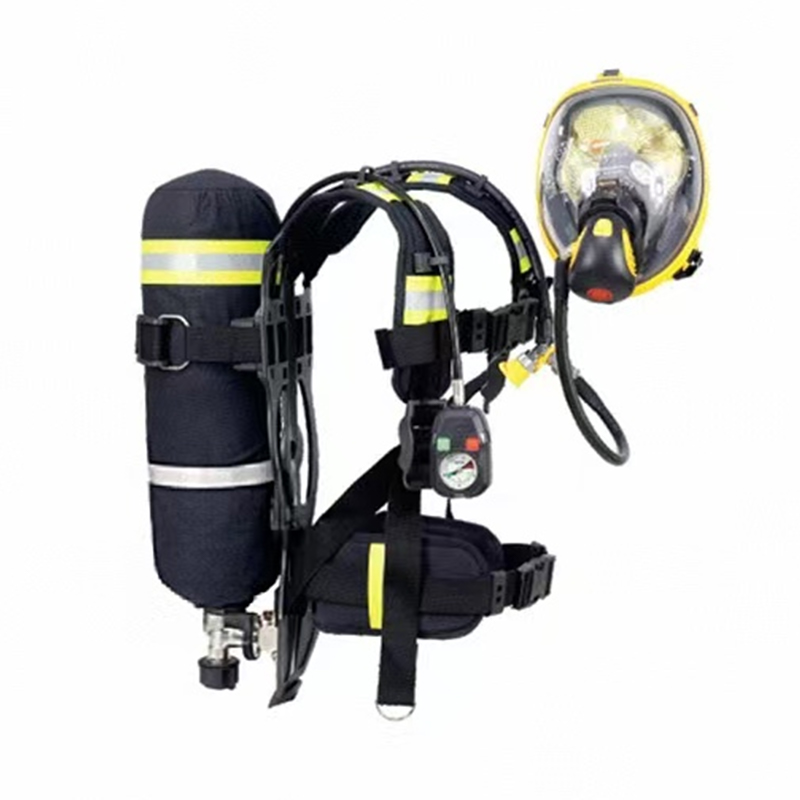

Self-Contained Breathing Apparatus (SCBA)Cylinder


The self-contained breathing apparatus (SCBA) is a device that uses a cylinder containing compressed air as a source to supply breathable air and provide protection for the human body. It is mainly used in firefighting, chemical, petroleum, metallurgy, shipbuilding, mining, laboratories, oil depots, warehouses, and other departments for emergency rescue and disaster relief. It enables firefighters or emergency rescue personnel to safely and effectively perform firefighting, emergency rescue, disaster relief, and medical rescue operations in environments with smoke, toxic gases, dust, or oxygen deficiency.

Inquiry Now
  • Respirator Technical Parameters

    Rated Working Pressure 30 MPa
    Pressure Reducer Output Pressure (0.6–1.0) MPa
    Output Flow Rate <800 L/min
    Safety Valve Opening Pressure (1.1–1.7) MPa
    Alarm Alarm Pressure (5.5±0.5) MPa
    Alarm Sound Level 90 dB(A)
    Full Facepiece Inhalation Pressure >0 Pa
    Exhalation Pressure <800 Pa
    Cylinder Valve Burst Pressure (37–45) MPa
    Back Frame Flame Test Temperature 800 °C

    Air Cylinder Main Technical Parameters

    Category Technical Parameter Description
    Volume (L) 3 6.8 6.8×2 9
    Weight ~2.2 kg ~3.8 kg ~7.6 kg ~5.4 kg
    Material Carbon fiber composite material (full carbon fiber winding type)
    Bottle Neck Thread M18×1.5
    Rated Working Pressure 30 MPa
    Burst Pressure 105 MPa
    Inspection Interval 3 years
    Service Life 15 years
    Product Standard GB28053-2011
